The A1200 NG® is a new modern implementation of the A1200®

Features include classic joystick ports, floppy drive support, HDMI out, Wireless Internet and much more.

Updated software included such OctaMED 8, Final Writer 7.2, PPaint 7.4, AmiBench®.

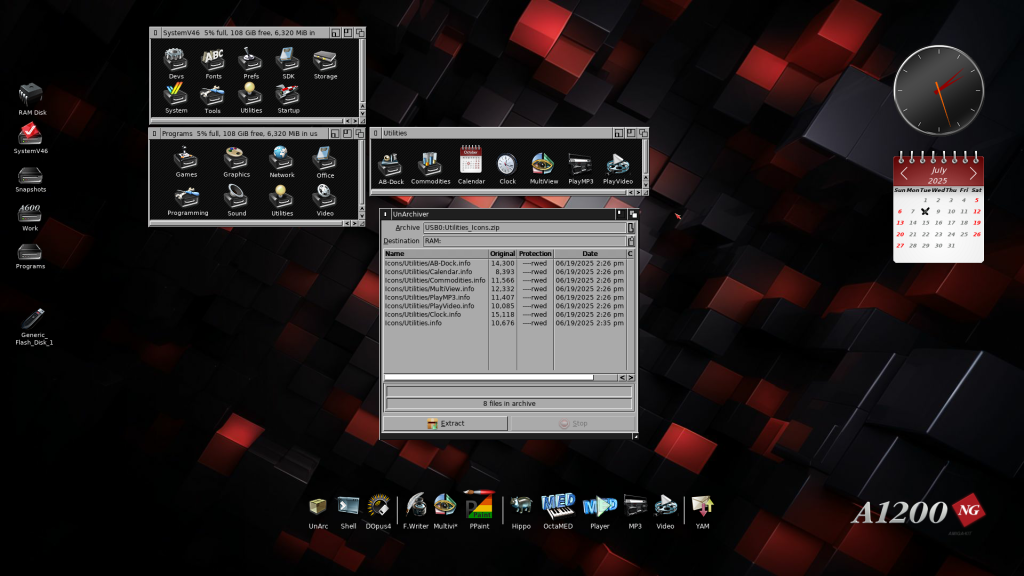

AmiBench® has been updated to full HD. It has modern tools to play HD video, play MP3 music. Programs can be quickly run in a few clicks of the dock icons. Despite it’s polished looks, it still retains the classic operation and familiar feel of it’s predecessors.

Features

  • Games menu: add, edit & launch ADF/HDF/WHDBoot games, scene demos & apps (OCS, ECS, AGA).
  • AmiBench: 1080p screenmode with 32-bit icon set. Run Classic 68k programs.
  • Dual 9-pin Joystick Ports: accepts Commodore compatible joysticks ¹
  • HDMI compatible 1080p output: plugs into HDMI compatible television or monitor
  • Wireless Internet: connects to AmiSphere for system updates and email
  • Bluetooth: optionally output audio to Bluetooth speaker
  • 34-pin Floppy Header: read and write to real 880K floppy disks (Greaseweazle compatible)
  • RS232 Serial Port (25-pin)
  • System RAM: 4GB in total. 1GB Fast Memory allocated for AmiBench.
  • Hard Drive: 64GB, 128GB or 256GB (High Speed) option.
  • Internal USB headers for connection of optional USB to SATA or USB to IDE adapters.
  • External USB headers for connection of DrawBridge USB floppy disk drives, Mice, MIDI interfaces, Flash Drives.

Product Options

Pre Installed Software

  • AmiBench Release V46
  • Personal Paint (PPaint) V7.4
  • OctaMED V8
  • Directory Opus V4
  • Final Writer V7.2
  • YAM email client
  • JST
  • Utilities: EaglePlayer, HippoPlayer, Dock, Clock, Calendar, UnArchiver, PlayMP3, PlayVideo

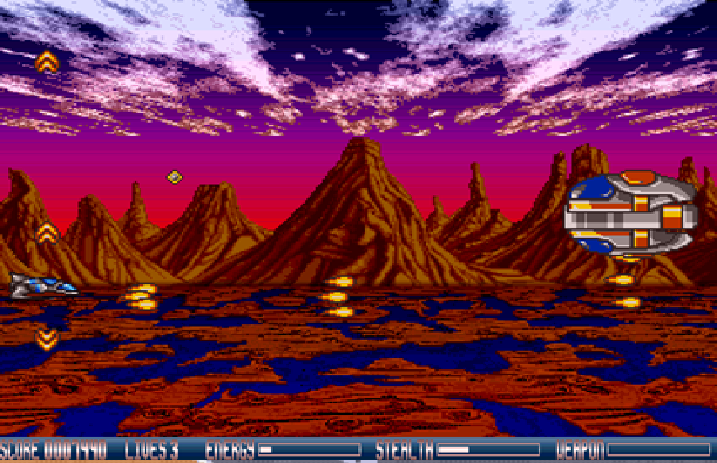

  • Games: Super Skidmarks, Thunderhell, Virtual GP, T-Racer

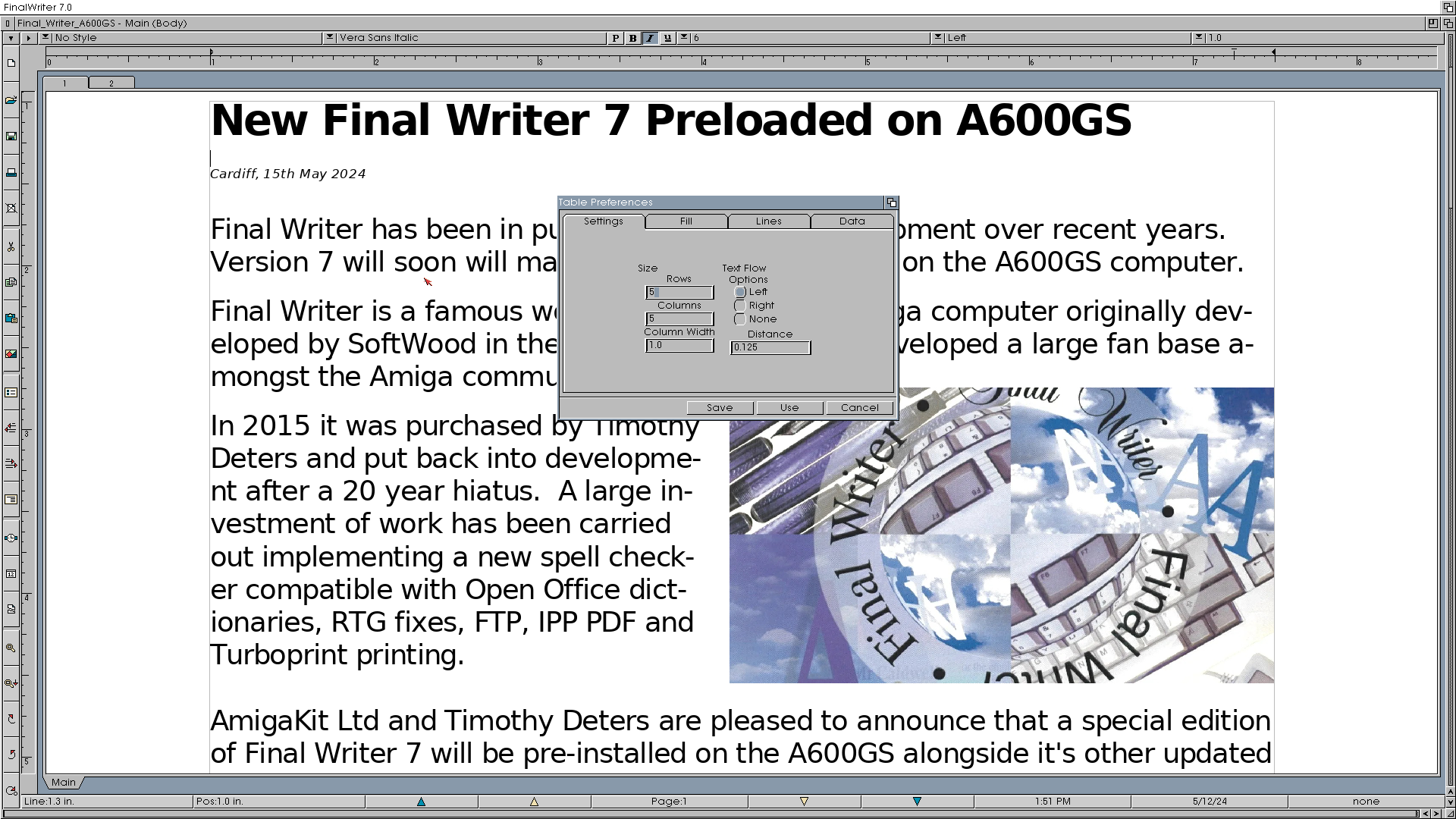

Final Writer 7

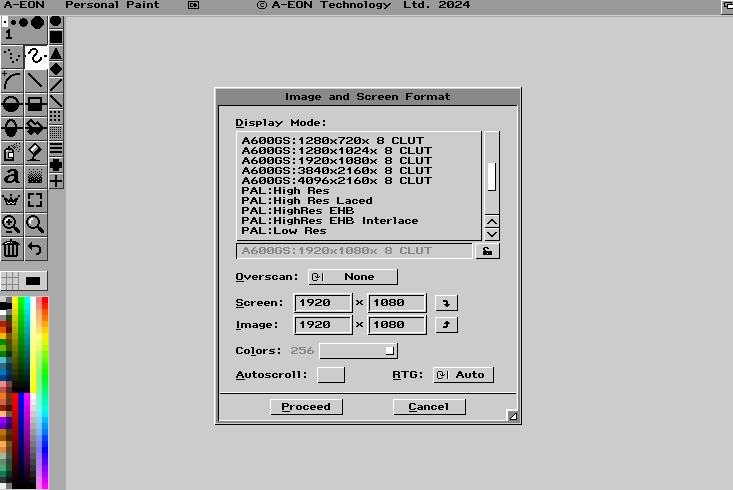

Personal Paint 7.4

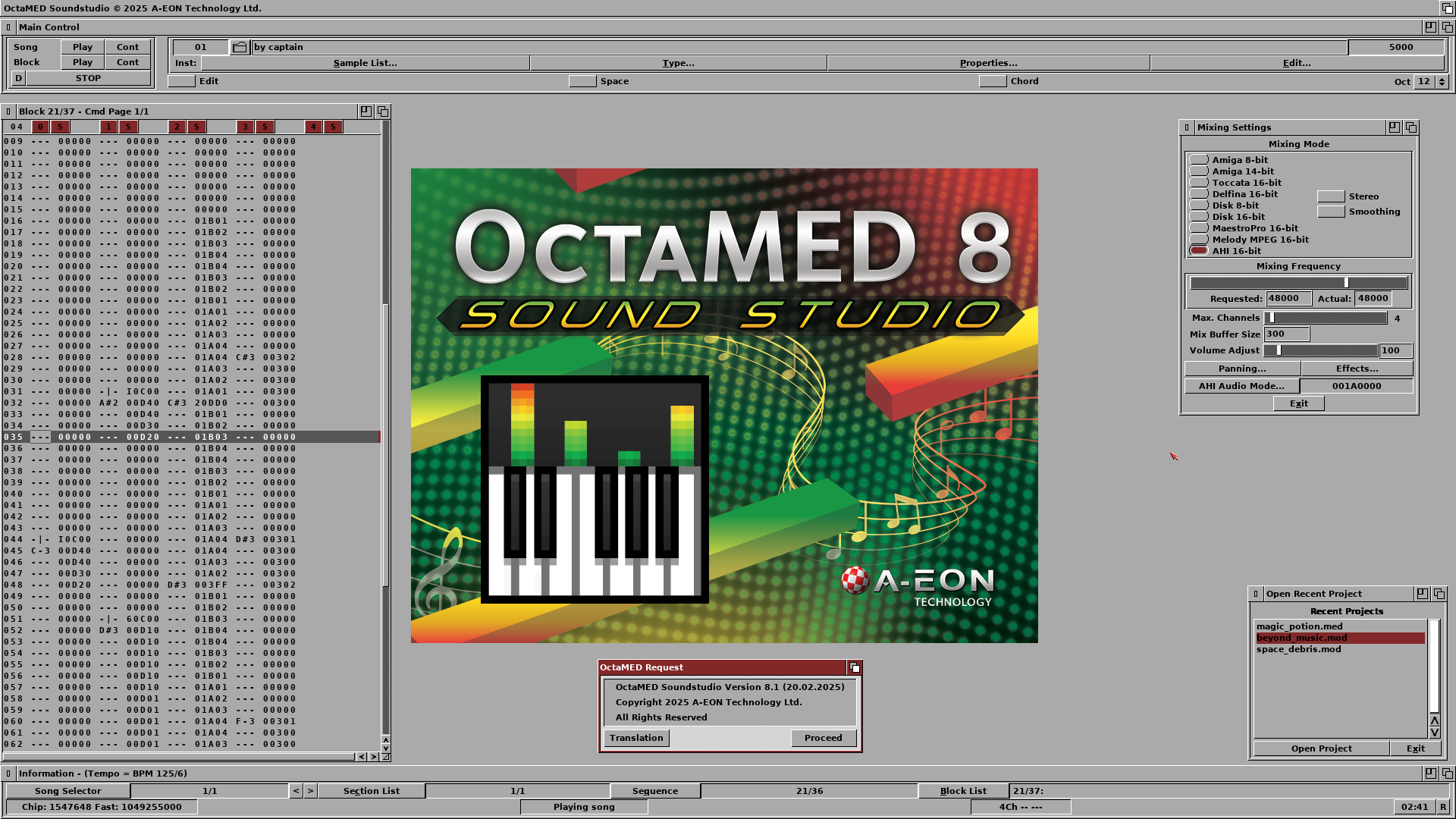

OctaMED 8

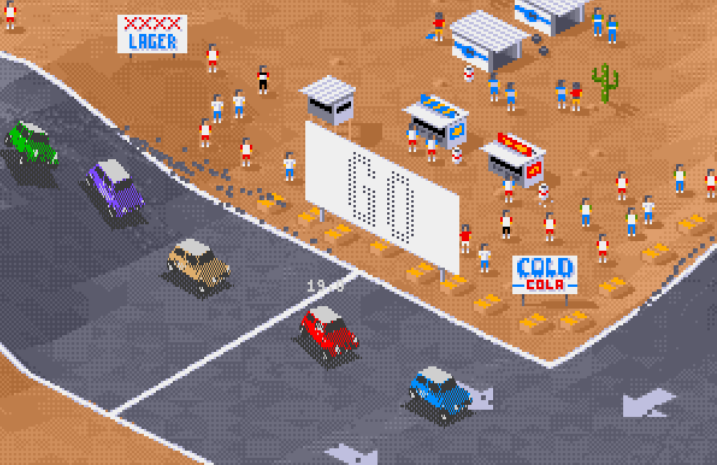

Super Skidmarks
T-Racer

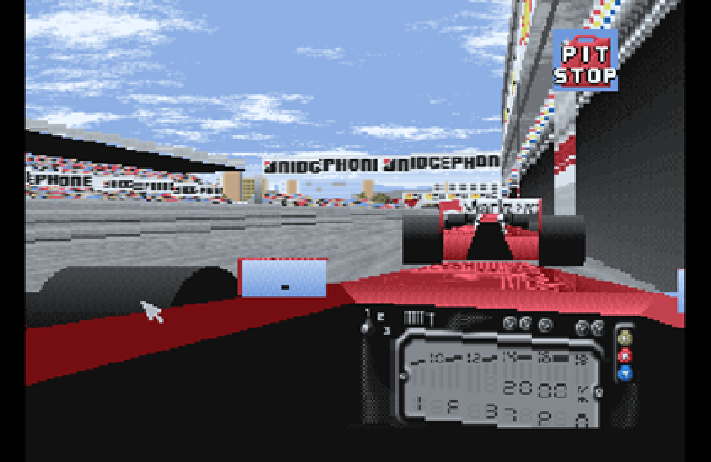

Virtual GP

Rear External Ports

  • 9-pin joystick
  • USB ports
  • 25-pin Serial Port
  • Left / Right Audio RCA audio out
  • Composite (no driver support)
  • Power In Port
  • Compact Flash reader

Internal Connectors

  • 34-pin Floppy Disk Drive header
  • USB header (dual)
  • A1200 LED module header
  • A1200 keyboard ribbon header (31 pin)
  • 4-pin Power header for optional floppy disk drive
  • 4-pin Power header for optional SATA/IDE hard drive
  • 2-pin Fan header

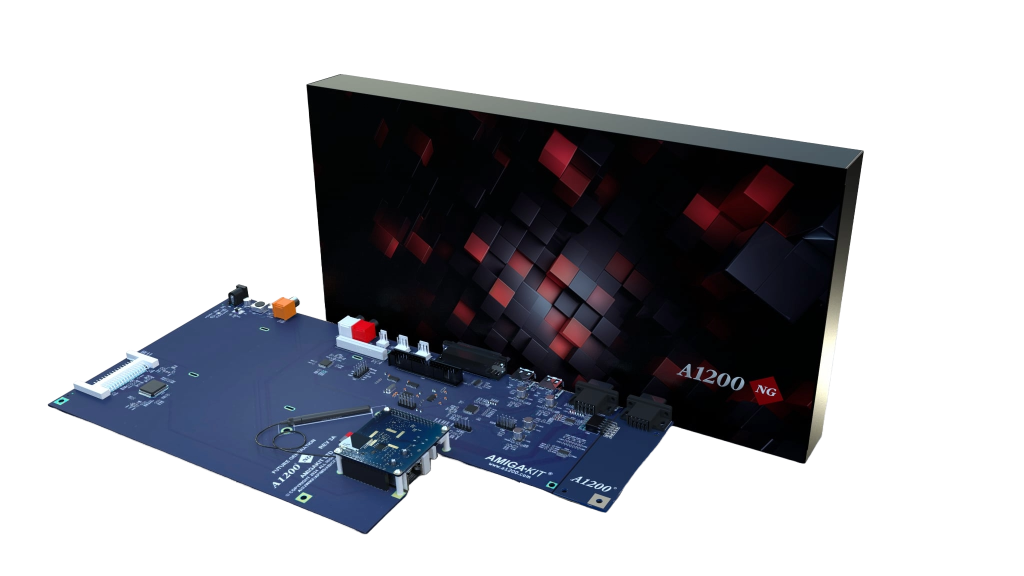

What’s Included

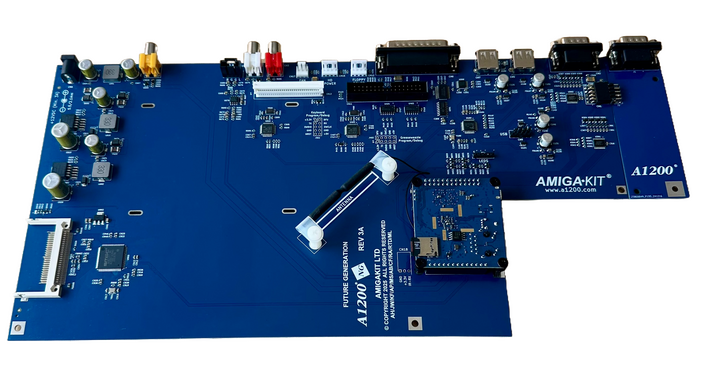

  • A1200NG motherboard
  • ARM module (H618 Quad Core 1.5Ghz/4GB RAM)
  • 64GB or 128GB or 256GB micro SD card
  • HDMI cable with backplate (fits underneath floppy drive)

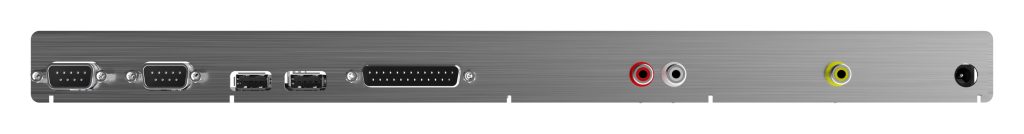

  • Metal backplate for ports
  • Power Supply Unit (12v)
  • Printed Colour Manual
  • A1200NG case badge
  • Silver foil serial case sticker
  • Hex bolts and screws

Speed Performance

The A1200NG delivers the following SysInfo speed rating of 257 MIPs or 303 MIPs in with the optional CPU Boost Kit installed and activated.

SysInfo

Floppy Disk Drive Compatibility

The A1200 NG is compatible with the following floppy disk drives (not supplied):

  • Commodore original 880K / 1.76MB drive drive
  • PC compatible 1.44MB drive

It is recommended to use original 600 / 1200 floppy disk drives to fit into an original case.

Buy The A1200 NG

Select the Buy button in United Kingdom, North America or Europe region below to order the A1200 NG.

Options that can be added at checkout:

  • CPU Boost Kit
  • A1200 Triple LED adapter
  • Additional 9-pin joystick port at checkout
  • You can also upgrade from the standard 64GB to either 128GB or 256GB Hard Drive storage.

United Kingdom (GBP):


North America (USD):


Europe (EUR):
